High reputation Periosteum Elevator - 630KG 8 Persons Passenger Lift Elevator with standard design – Fuji

Short Description:

Company Information About Shanghai Fuji Elevator Co.,Ltd Shanghai FUJI Elevator Co.,Ltd. originated in 1985 belong to the very large group,da hai holding,is the first national AA level professional elevator manufacturing,installation,modifocation,maintenance license.Located in no.299 baofeng road,xuxing town,jiading district,Shanghai,the company is the headquarters center integrating elevator,escalator,mechanical parking equipment R&D,production,marketing,display and training.The company ...


Product Detail

FUJI Factory

FUJI Certificate

Our Customers

FUJI Package

Product Tags

Related Video

Feedback (2)

Our products are greatly recognized and trustworthy by users and will fulfill continually shifting economic and social requires for Bone Elevator , Simple Machines Elevator , Dumbwaiter 50kg , We have been one of your largest 100% manufacturers in China. A lot of large trading businesses import products and solutions from us, so we can easily give you the most beneficial price tag with the same quality for anyone who is interested in us.
High reputation Periosteum Elevator - 630KG 8 Persons Passenger Lift Elevator with standard design – Fuji Detail:

Company Information About Shanghai Fuji Elevator Co.,Ltd
Shanghai FUJI Elevator Co.,Ltd. originated in 1985 belong to the very large group,da hai holding,is the first national AA level professional elevator manufacturing,installation,modifocation,maintenance license.Located in no.299 baofeng road,xuxing town,jiading district,Shanghai,the company is the headquarters center integrating elevator,escalator,mechanical parking equipment R&D,production,marketing,display and training.The company has a professional comprehensive product display and customer experience center,4.0 on behalf of the industry’s advanced level of automated production lines,elevators dedicated test facilities and Internet data monitoring center,the quality and safety operation of the elevator provides a reliable guarantee.The 108-meter modern test tower has become a landmark in the area.The company can produce up to 10000 sets of annual production capacity,and provide a comprehensive elevator solution for the three-dimensional transportation of various buildings.

FUJI elevator core technology originates from Japan,through the comprehensive technical innovation,optimizes the integration of the global elevator industry  resources,and fully creates the elevator products that meet the needs of the middle and high-end market.At home,the company has specialized cooperation with Shanghai Jiaotong university and east China institute of science and technology,and carries out professinal research and development in elevator high-tech,energy conservation and environmental protection and high security.Henk elevator is now in the product design,production,installation and the whole process quality monitoring and other aspects to reach and exceed the European market similar products standard.

There is no best,only better.FUJI elevator is the best practitioner in the global elevator industry ,the leader in safety technology,the leader in energy  conservation and environmental protection technology,and the technology of high-tech humanization service technology.





Product Information

Passenger elevator(Machine room)
Apart from the effective and intellectual control system, the small machine room elevator also applies small traction machine and thin control cabinet design, which make the machine room smaller and the layout more compact. The new generation small machine room elevator truly fulfill the company’s energy-saving concept.

It greatly saves the space
Machine room is only an extension of the well. It is convenient in construction and low in cost. The application of compact gearless traction machine leaves a larger space for machine room.

Passenger elevator(Machine roomless)
The company machine roomless passenger elevator, with an environment concern, saves energy and reduces the consumption, save the construction area and increases the freeness of designers, thereby fully reflect the idea of environ ment friendly culture. Compared with the gearwheel elevators with the same load capacity, machine roomless elevators save 25% electricity and 10% of construction area. The company has broken through the prerequiste that machine rooms must be available for elevator, providing limitless possibilities of creation for the limited space of modern construction
A Complete Order Process

1. Raw Material
We stictly check and contol the quality of raw materials.
QC department will check all the materials, when raw material comes to factory, we refused any cuounterfeit products. Only qualified material will get into raw material warehouse
.
2. Producing management
Production department will make the production according to enginner’s instrution.
There is a agenda in each workshop showing the production plan everyday. By this way, The workers are
All clearly know which project is producing now. Then check the machines status before operation.

3. Packing
We apply solid plywood which can stand long time sea shipping. For some important parts, like control cabinet,
Door operator and motor, parts will be covered by a strong film first, with desiccant, before put into boxes.

4. Quality Control
1) All raw materials will be checked before get into warehouse. And bulk electronic product do sampling inspection. All parts must have qualified certificate from suppliers
Worker1 is responsible for this.
2) After elevator and escalator finished, We will test the match of elevator motor and control cabinet, and the running condition of escalator and moving walks.
3) Workers will install some main parts before packing, such as cabin/supporting beam of motor, in case any hole is not accurate.
4) After packed, we will check package condition for each parts, and takes photo for further reference.
5) When delivery, we will check if all parts packed in container to avoid any missing, and take photos for further reference.

5. After Sales Service
1) Entrust maintenance to local agent.
2) Arranged by customer.
3) If necessary, we provide training for customer.
4) We arrange professtional workers for installation and commision. But buyer need to inform us 1 month advance for visa.

Main function

 Standard function
1 Inspection operation 29 Over speed protection
2 Slow speed running 30 Contact protection for brake switches
3 Automatic door opening time adjustment 31 Interphone communication
4 Full load bypass 32 Wheeling protection
5 Automatic turn off lighting and fun 33 Alarm bell
6 Automatic return to home landing 34 Emergency lighting
7 Door re-closing 35 Level switch protection
8 Error recording 36 False call canceling
9 Hoist way self learning 37 Automatic reversal call canceling
10 Automatic door opening 38 Floor display directional setup
11 Attendant service 39 Isolate running
12 Bypass operation 40 Dot matrix floor indicator
13 Automatic correction of floor position signal 41 Rolling display of running direction
14 Lift locking 42 CAN communication protection
15 Protection of door lock up outside dooor area 43 Arrival gong
16 Infrared light curtain protection 44 Emergency return in case of fire
17 Over load protection 45 Main control protection
18 Reversal runing protection 46 Main control CPU WDT protection
19 Anti-skip protection 47 Discretional setup of service floor
20 Anti terminal switches protection 48 Test running
21 Anti-terminal over running protection 49 Clock control
22 Phrase protection 50 Direct landing
23 Contactor protection 51 Load weighting device
24 Failure analysis of shaft self learn 52 Full collective control
25 Motor temperature protection 53 Door opening button (external)
26 Door opening failure protection 54 Door opening button (internal)
27 Protection for door lock short circuit 55 Fire running function
28 Door lock failure for brake switches
  Optional function
1 Open the door in advance 10 Remote control
2 Direct parking 11 Camera function in the car
3 Group control 12 Voice announcer
4 Duplex control 13 Car assistant operation box
5 On-duty peak service 14 Operation box for the handicapped
6 Off-duty peak service 15 Intelligent calling service
7 Door open time extending 16 IC card control function
8 Car arrival gong 17 Leveling when power failure
9 Remote monitor
Small machine room passenger lift specifications
No. of persons Rated capacity
(kg)
Rated speed (m/s) Car net size Door net size(DW*DH)mm Shaft inside dimension Machine room size Max traveling height(m)
W*D(mm) 2P center opening W*D(mm) Pit depth OH W*D*H(mm)
6 450 1.0 1200*1000 700*2100 1750*1620 1500 4400 1750*1620*2500 45
8 630 1.0 1400*1100 800*2100 2000*1720 1500 4400 2000*1720*2500 45
1.6/1.75 1600 4500 96
10 800 1.0 1400*1350 800*2100 2000*2000 1500 4400 2000*2000*2500 45
1.6/1.75 1600 4500 96
2.0 1800 4900 120
2.5 2000 5100 150
13 1000 1.0 1600*1500 900*2100 2200*2150 1500 4400 2200*2150*2500 45
1.6/1.75 1600 4500 96
2.0 1800 4900 120
2.5 2000 5100 150
3.0 2600 5600 150
3.5 3100 5950 180
4.0 3850 6350 180
15 1150 1.0 1700*1500 1000*2100 2300*2200 1500 4400 2300*2120*2500 45
1.6/1.75 1700 4500 96
2.0 1800 4900 120
2.5 2000 5100 150
3.0 2600 5600 150
3.5 3100 5950 180
4.0 3850 6350 180
16 1250 1.0 1950*1400 1100*2100 2550*2100 1500 4400 2600*2100*2500 45
1.6/1.75 1700 4500 96
2.0 1800 4900 120
2.5 2000 5100 150
3.0 2600 5600 150
3.5 3100 5950 180
4.0 3850 6350 180
18 1350 1.0 1950*1500 1100*2100 2550*2250 1500 4400 2600*2200*2500 45
1.6/1.75 1700 4500 96
2.0 1800 4900 120
2.5 2000 5100 150
3.0 2600 5600 150
3.5 3100 5950 180
4.0 3850 6350 180
21 1600 1.0 1950*1750 1100*2100 2550*2500 1500 4400 2600*2500*2500 45
1.6/1.75 1700 4500 96
2.0 1800 4900 120
2.5 2000 5100 150
3.0 2600 5600 150
3.5 3100 5950 180
4.0 3850 6350 180

Note: the parameter table shows the standard design of our small machine room passenger elevator. We also can design elevator for you with your parameter.

Welcome experienced elevator company act as our distributors/agent to cooperate with us on long term basis. We would like to provide our distributor/agent promotion price as reward for the cooperation. if you are interested, please do not hesitate to contact with us. Thanks!

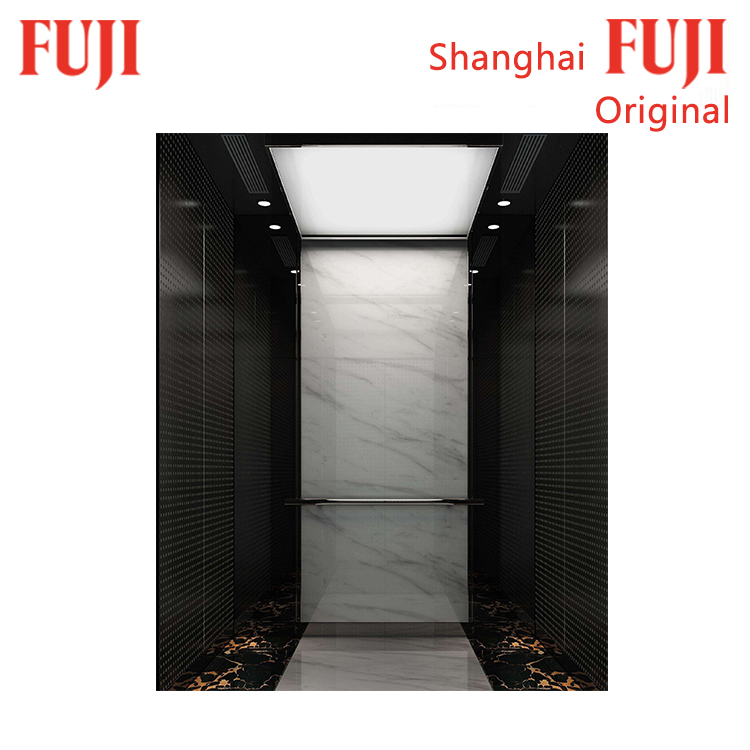

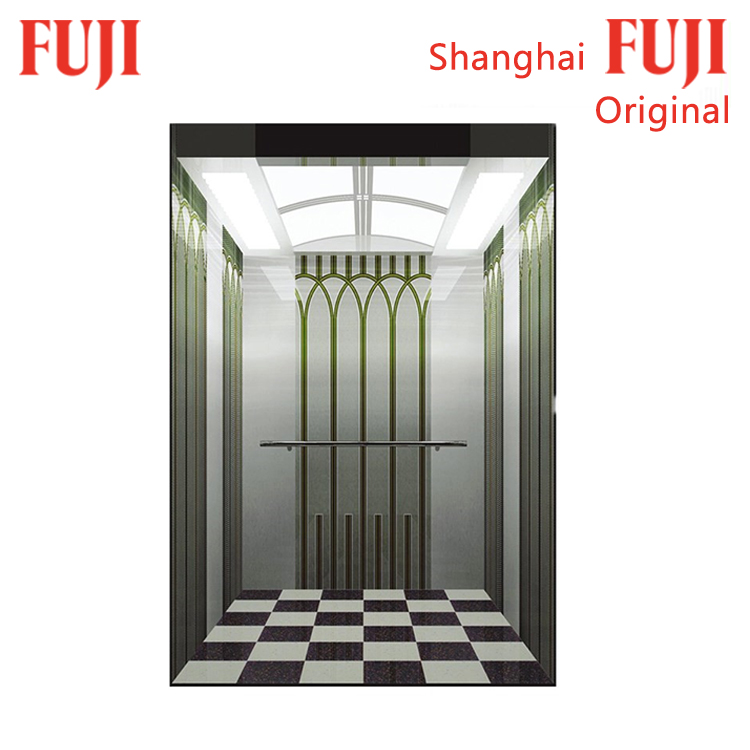

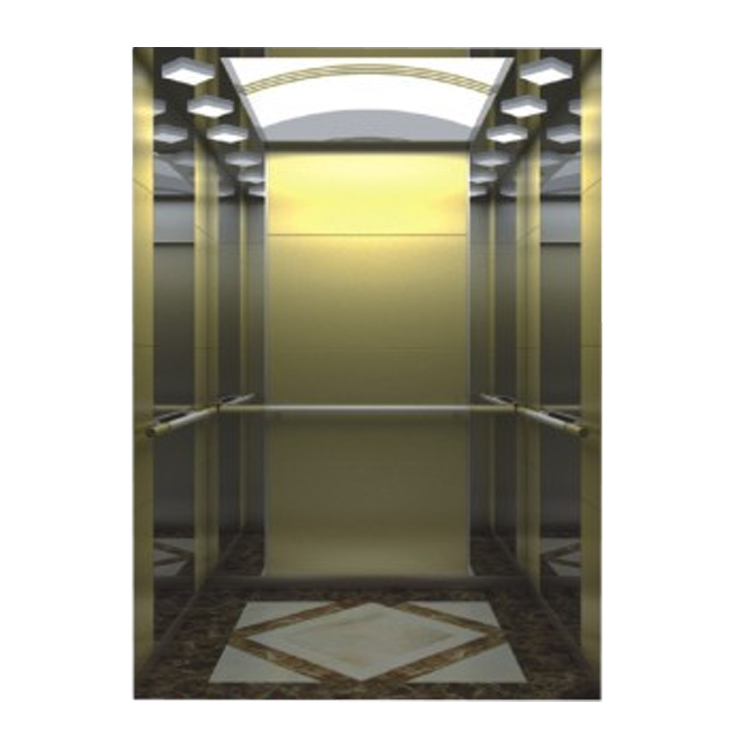

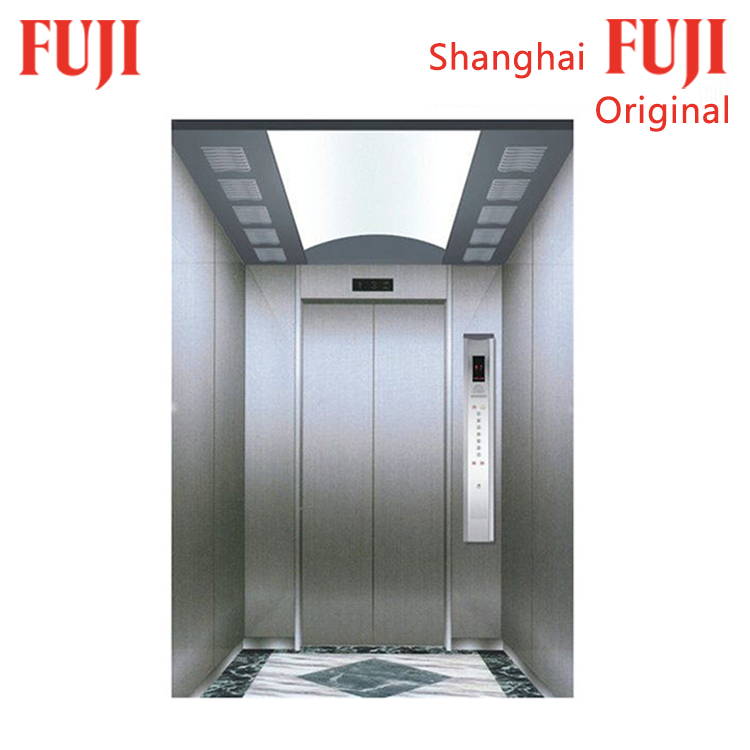

Product detail pictures:

High reputation Periosteum Elevator -
 630KG 8 Persons Passenger Lift Elevator with standard design  – Fuji detail pictures

High reputation Periosteum Elevator -
 630KG 8 Persons Passenger Lift Elevator with standard design  – Fuji detail pictures

High reputation Periosteum Elevator -
 630KG 8 Persons Passenger Lift Elevator with standard design  – Fuji detail pictures

High reputation Periosteum Elevator -
 630KG 8 Persons Passenger Lift Elevator with standard design  – Fuji detail pictures

High reputation Periosteum Elevator -
 630KG 8 Persons Passenger Lift Elevator with standard design  – Fuji detail pictures
